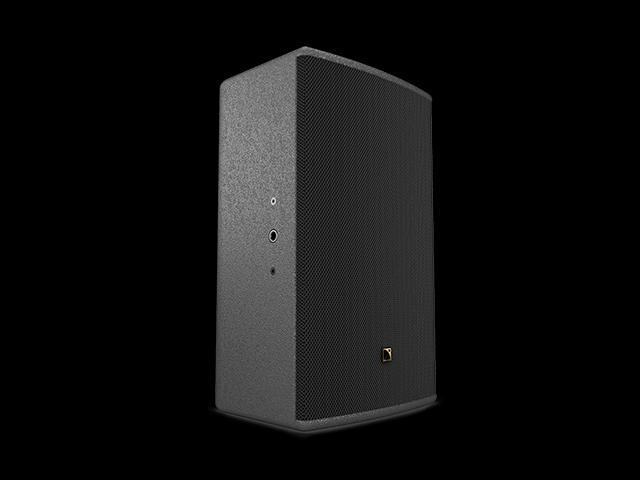

[L-acoustics 8吋被動式喇叭] X8

Usable bandwidth (-10 dB)：60 Hz – 20 kHz ([X8])

Maximum SPL1：129 dB ([X8])

Nominal directivity (-6 dB)：100° axisymmetric

Monitor angle：35°

Transducers：

LF: 1 × 8″ cone driver

HF: 1 × 1.5″ diaphragm compression driver, neodymium

Acoustical load：

LF: bass-reflex, L-Vents

HF: conical waveguide

Nominal impedance：8 Ω

Connectors：

IN: 1 × 4-point speakON

LINK: 1 × 4-point speakON

Rigging and handling：

1 handle

DIN580-compatible M8 threaded insert

4 M10 threaded inserts

1 35 mm pole socket

Dimensions：250 mm (9.8 in) / 424 mm (16.7 in) / 164 mm (10.4 in)

Weight (net)：12 kg / 26.5 lb

Cabinet：premium grade Baltic beech and birch plywood

Front：

Coated steel grill

Acoustically neutral 3D fabric

Finish：

dark grey brown Pantone 426 C

pure white RAL 9010

custom RAL code on special order

IP：IP43
