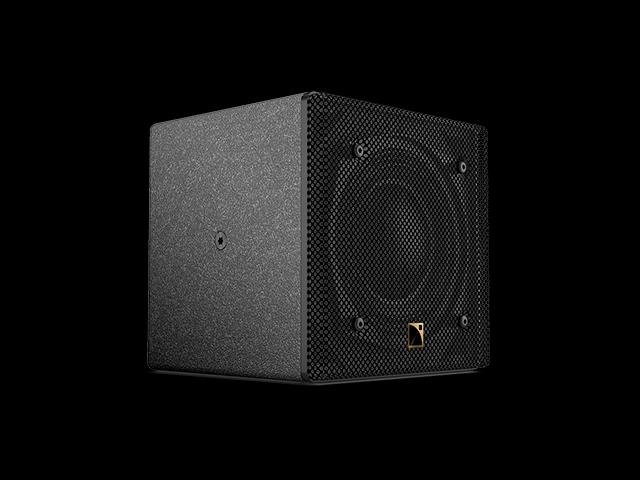

[L-acoustics 5吋被動式喇叭] 5XT

Usable bandwidth (-10 dB)：95 Hz – 20 kHz ([5XT])

Maximum SPL1：121 dB ([5XT])

Nominal directivity (-6 dB)：110° axisymmetric

Transducers：

LF: 1 × 5″ cone driver

HF: 1 × 1″ diaphragm compression driver

Acoustical load：bass-reflex

Nominal impedance：16 Ω

Connectors：

IN: 1 × 4-point speakON

LINK: 1 × 4-point speakON

IN/LINK: 2 × 2-point screw terminals

Rigging and handling：

2 M6 inserts for ETR5

1 × 3/8″ insert for microphone stand

Dimensions：165 mm (6.5 in) / 165 mm (6.5 in) / 165 mm (6.5 in)

Weight (net)：3.5 kg / 7.7 lb

Cabinet：premium grade Baltic birch plywood

Front：steel with anti-corrosion coating

Finish

dark grey brown Pantone 426 C

pure white RAL 9010

custom RAL code on special order

IP：IP30
