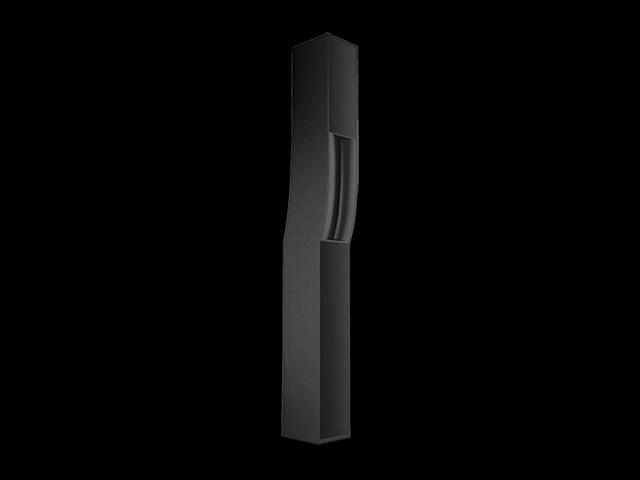

柱狀喇叭

-Max SPL：137 dB

-Bandwidth：87 Hz- 20 KHz

-Transducers：LF : 6 x 5"

HF : 3 x 1.75"

-Weight：21 kg / 46 lb

-Directivity：H: 140°

　　　　　 V: +5°/-21°

Usable bandwidth (-10 dB)：87 Hz – 20 kHz

Maximum SPL1：137 dB

Nominal directivity (-6 dB)：

vertical: +5°/-21°

horizontal: 140°

Transducers：

MF: 6 × 5″ cone drivers

HF: 3 × 1.75″, diaphragm compression drivers

Acoustical load：

LF: bass-reflex, L-Vents

HF: DOSC waveguide; L-Fins

Nominal impedance：8 Ω

Connectors：

1 x 4-point speakON

1 x 2-point screw terminal

1 x AutoConnect

Rigging and handling：

DIN580-compatible M8 threaded insert

2 integrated inserts for rigging accessory

Dimensions：144 mm (5.7 in) / 1301 mm (51.2 in) 209 mm (8.2 in)

Weight (net)：21 kg / 46 lb

Cabinet：premium grade Baltic beech and birch plywood

Front：

Coated steel grill

Acoustically neutral 3D fabric

Finish：

dark grey brown Pantone 426 C

pure white RAL 9010

custom RAL code on special order

IP：IP54
